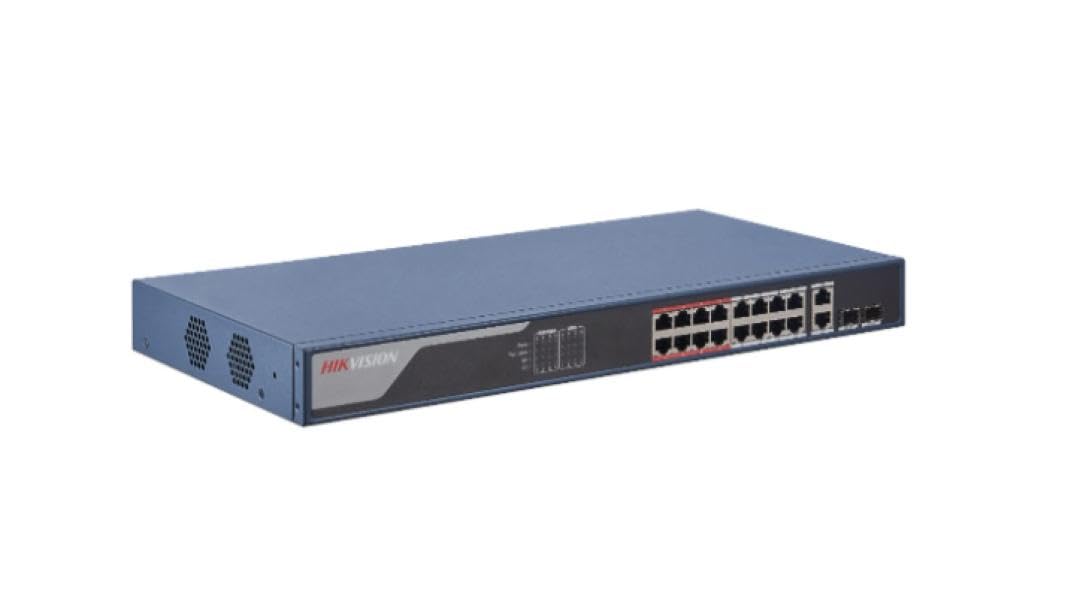

Hikvision - Fast Ethernet Hikvision Switch 16 PoE+2 Gigabit Ports - DS-3E1318P-SI

Description Product details Technical sheet Further details Download
FAST ETHERNET SWITCH 16 POE PORTS + 2 GIGABIT - HIKVISION
Fast Ethernet Switch -Hikvision
16 x 1000Mbps RJ45 PoE Ports - 2 Gigabit Ports
Product Details
Fast Ethernet Switch - Hikvision
16 RJ45 1000Mbps PoE Ports
2 Gigabit Ports
IEEE 802.3at / af standard for PoE ports
Network topology management, alarm push, network status monitoring
6KV Surge Protection for PoE Ports
AF / AT camera can reach up to 300m in extended mode
Technical data sheet
MODEL
DS-3E1318P-SI
Network Parameters?
Port Number
16 × 100 Mbps PoE RJ45 port, and 2 × gigabit combo
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z.
High Priority Ports
Ports 1 to 8
Forwarding Mode
Store-and-forward switching
Working Mode
Standard mode (default)
Extend mode
MAC Address Table
16K
Switching Capacity
7.2Gbps
Packet Forwarding Rate
5.3568 Mpps
Internal Cache
4 Mbits
PoE Power Supply?
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-).
PoE Port
Port 1 to 16
Max. Port Power
30W
PoE Power Budget
230w
Software Function
Device Maintenance
Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Configuration
Port rate configuration, slow control, and ports enabling
Long Range
Up to 300m transmission
PoE Configuration
PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.
PoE enabling: Support
Port Rate-Limi
