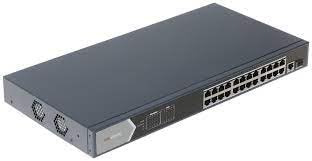

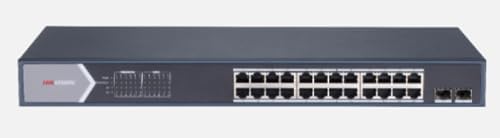

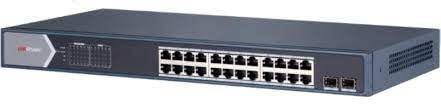

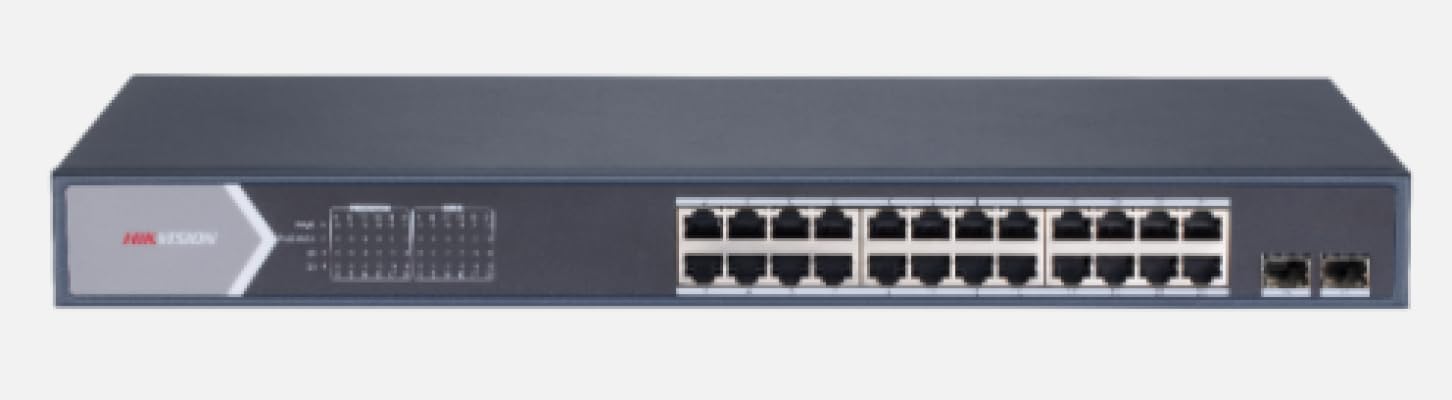

Hikvision 24 Port Gigabit Unmanaged PoE Switch – DS-3E0526P-E/M The Hikvision DS-3E0526P-E/M is a powerful 24-port Gigabit unmanaged PoE switch designed to deliver seamless connectivity and reliable power supply for surveillance and networking needs. Built with Hikvision’s trusted quality, this switch ensures high-speed data transfer, stable power delivery, and hassle-free installation. With 24 PoE ports supporting IEEE 802.3af/at standards, each port can supply up to 30W, with a total PoE budget of 225W—making it ideal for powering IP cameras, access points, and VoIP devices without additional adapters. It also includes 2 Gigabit SFP uplink ports for flexible network expansion. The switch provides wire-speed forwarding and store-and-forward switching, ensuring smooth performance even under heavy loads. Built-in 6kV surge protection keeps your devices safe from unexpected power spikes, while the robust metal housing and rack-mount design make it suitable for professional installations. Thanks to its plug-and-play unmanaged design, no configuration is required—simply connect your devices and start operating. The switch is also compatible with JK Vision BNC systems, making it an excellent choice for CCTV setups that combine PoE cameras with hybrid systems. Key Features: 24 × Gigabit PoE ports (802.3af/at), 2 × Gigabit SFP uplinks Up to 30W per port, 225W total PoE budget 52 Gbps switching capacity with stable forwarding 6kV surge protection for safer operation Rugged metal body, rack-mount ready Fully plug & play, no configuration needed Compatible with JK Vision BNC CCTV systems
Product Overview
-
Brand: Hikvision
-
Number of ports: 24
-
Included components: Adapter
-
Colour: black
-
Compatible devices: Desktop
Product Features
- 24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- Gigabit network access Wire-speed forwarding
- Store-and-forward switching Solid high-strength metal shell
Product Information
| Number of Ports | 24 |
| Compatible Devices | Desktop |
| Voltage | 6 Kilovolts |
| Interface | RJ45, SFP |
| Platform | Not Machine Specific |
| Switch Type | Unmanaged |
| Color | black |
| Case Material Type | Metal |
| Item Weight | 450 Grams |
| Brand | Hikvision |
| Built-In Media | Adapter |
| Number of Items | 1 |
| Manufacturer | HIKVISION |
| Unit Count | 1.00 Count |
| Model Number | DS-3E0526P-E/M |
| ASIN | B0CFXRR4F3 |
